SlopeFilter

class of dascore.proc.filter
inherits from: PatchProcessor, DascoreBaseModel, pydantic.main.BaseModel

SlopeFilter(
    *args ,
    filt: Any ,
    dims: Any = (‘distance’, ‘time’),
    directional: Any = False,
    invert: Any = False,
)-> None

Filter the patch over certain slopes in the 2D Fourier domain.

Most commonly this is used as an F-K (frequency wavenumber) filter to attenuate energy with specified apparent velocities.

Parameters

Parameter	Description
filt	A length 4 array of the form [va, vb, vc, vd]. If invert is False, the filter selects the apparent velocities between ‘vb’ and ‘vc’ with tapering boundaries from ‘va’ to ‘vb’ and from ‘vc’ to ‘vd’.
dims	The dimensions used to determine slope. The first dim is in the numerator and the second in the denominator. (eg distance, time) represents a velocity since distance/time has units of \|L\|/\|T\| (commonly m/s).
directional	If True, the filter should be considered direction. That is to say, the sign of the values in `filt` indicate the direction (towards or away) with increasing coordinate values. This can be used for up/down or left/right separation, assuming a near-linear fiber layout.
invert	If True, the filter represents a notch, meaning the slopes specified by the inner `filt` parameters are attenuated rather than those outside of them.

Examples

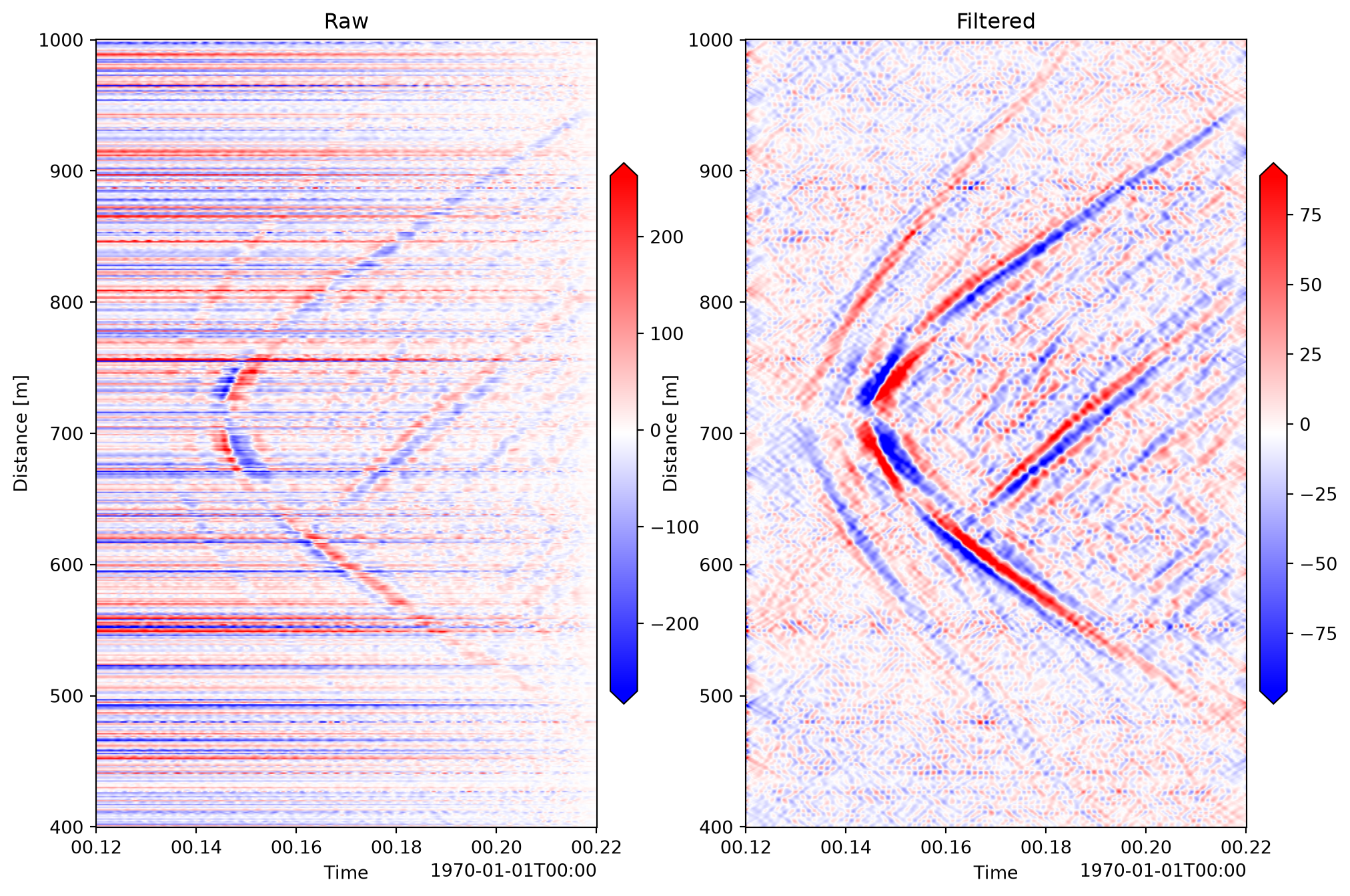

# Example 1: Compare slope filtered patch to Non-filtered.
import matplotlib.pyplot as plt
import numpy as np

import dascore as dc
from dascore.units import Hz


# Apply taper function and bandpass filter along time axis from 1 to 500 Hz
patch = (
    dc.get_example_patch('example_event_1')
    .set_units(distance='m', time='s')
        .taper(time=0.05)
        .pass_filter(time=(1*Hz, 500*Hz))
)
filt = np.array([2e3,2.2e3,8e3,2e4])
# Apply fk filter
patch_filtered = patch.slope_filter(
    filt=filt,
        directional=False,
    invert=False
)
# Plot results
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 8))
ax1 = patch.viz.waterfall(ax=ax1, scale=0.5)
_ = ax1.set_title('Raw')
ax2 = patch_filtered.viz.waterfall(ax=ax2, scale=0.5)
_ = ax2.set_title('Filtered')

# Example 2: Inverted (notch) filter
patch_filtered = patch.slope_filter(filt=filt, invert=True)

# Example 3: specify units
filt = np.array([2e3,2.2e3,8e3,2e4]) * dc.get_unit("m/s")
patch_filtered = patch.slope_filter(filt=filt)

Methods

Name	Description
check	Refuse a patch which does not carry what the operation needs.
get_metadata	Return the filtered metadata, the transforms and the slope mask.
kernel	Return the data with the mask applied in the 2D Fourier domain.
model_copy	Copy the model, dropping cached values the update invalidates.
new	Create new instance with some attributed updated.
numpy_kernel	As `kernel`, transforming with numpy, as dft does for numpy data.
slope_filter	Filter the patch over certain slopes in the 2D Fourier domain.
reconcile	Return metadata or a patch holding the final data; default as is.
run	Run the operation: check, get_metadata, kernel, reconcile, record.
